Environment

• Windows 7 Professional
• Microsoft Visual Studio Community 2015
• FreeRTOS v10.0.1

Code

Based this project “FreeRTOS/Demo/WIN32-MSVC”, modified “main_blinky.c”.

	/* Standard includes. */
	#include <stdio.h>
	#include <conio.h>
	#include <stdbool.h>
	/* Kernel includes. */
	#include "FreeRTOS.h"
	#include "task.h"
	#include "semphr.h"
	/* Priorities at which the tasks are created. */
	#define tskReadButton_PRIORITY ( tskIDLE_PRIORITY + 1 )
	#define tskShowState_PRIORITY ( tskIDLE_PRIORITY + 2 )
	#define tskController_PRIORITY ( tskIDLE_PRIORITY + 3 )
	/* The rate at which show state is sent from ShowState to Controller.
	The times are converted from milliseconds to ticks using the pdMS_TO_TICKS() macro. */
	#define ShowState_FREQUENCY_MS pdMS_TO_TICKS( 500UL )
	/* The rate at which button input is checked by ReadButton.
	The times are converted from milliseconds to ticks using the pdMS_TO_TICKS() macro. */
	#define ReadButton_FREQUENCY_MS pdMS_TO_TICKS( 100UL )
	/* The number of items the queue can hold at once. */
	#define QUEUE_LENGTH ( 2 )
	/* The values sent to the queueController. */
	#define BUTTON_NONE ( -1L )
	#define BUTTON_LKS ( 1UL )
	#define BUTTON_SET ( 2UL )
	#define BUTTON_CANCEL ( 3UL )
	#define LANE_DETECT_0 ( 4UL )
	#define LANE_DETECT_1 ( 5UL )
	/*-----------------------------------------------------------*/
	/* The tasks as described in the Clock.pdf file. */
	static void tskReadButton (void *pvParameters);
	static void tskShowState (void *pvParameters);
	static void tskController (void *pvParameters);
	/*-----------------------------------------------------------*/
	/* The queue used by ReadButton, ShowState, and Controller tasks. */
	static QueueHandle_t queueController = NULL;
	/* interrupt number and handler*/
	static unsigned long showStateInterruptNumber = 3;
	static unsigned long showStateInterruptHandler(void)
	{
	uint32_t ulQueuedValue;
	ulQueuedValue = "interrupt";
	xQueueSend(queueController, &ulQueuedValue, 0U);
	return pdTRUE;
	}
	/*-----------------------------------------------------------*/
	void main_blinky( void )
	{
	/* Create the queues. */
	queueController = xQueueCreate(QUEUE_LENGTH, sizeof(uint32_t));
	if (queueController != NULL)
	{
	/* Create the tasks. */
	xTaskCreate(tskReadButton, /* The function that implements the task. */
	"ReadButton", /* The text name assigned to the task - for debug only as it is not used by the kernel. */
	configMINIMAL_STACK_SIZE, /* The size of the stack to allocate to the task. */
	NULL, /* The parameter passed to the task - not used in this simple case. */
	tskReadButton_PRIORITY, /* The priority assigned to the task. */
	NULL ); /* The task handle is not required, so NULL is passed. */
	xTaskCreate(tskShowState, "ShowState", configMINIMAL_STACK_SIZE, NULL,
	tskShowState_PRIORITY, NULL );
	xTaskCreate(tskController, "Controller", configMINIMAL_STACK_SIZE, NULL,
	tskController_PRIORITY, NULL);
	/* Create time-tick interrupt handler */
	vPortSetInterruptHandler(showStateInterruptNumber, showStateInterruptHandler);
	/* Start the tasks running. */
	vTaskStartScheduler();
	}
	for( ;; );
	}
	/*-----------------------------------------------------------*/
	static void tskReadButton(void *pvParameters)
	{
	TickType_t xNextWakeTime;
	const TickType_t xBlockTime = ReadButton_FREQUENCY_MS;
	uint32_t ulReceivedValue;
	uint32_t ulQueuedValue;
	/* Prevent the compiler warning about the unused parameter. */
	(void)pvParameters;
	/* Initialise xNextWakeTime - this only needs to be done once. */
	xNextWakeTime = xTaskGetTickCount();
	for (;; ) {
	/* Wait until a key has been pressed. */
	if (_kbhit() != 0)
	{
	/* Remove the key from the input buffer. */
	ulReceivedValue = _getch();
	/* parse input. */
	ulQueuedValue = "none";
	switch (ulReceivedValue)
	{
	case (uint32_t) 'l': ulQueuedValue = BUTTON_LKS; break;
	case (uint32_t) 's': ulQueuedValue = BUTTON_SET; break;
	case (uint32_t) 'c': ulQueuedValue = BUTTON_CANCEL; break;
	case (uint32_t) '0': ulQueuedValue = LANE_DETECT_0; break;
	case (uint32_t) '1': ulQueuedValue = LANE_DETECT_1; break;
	}
	/* queue input. */
	xQueueSend(queueController, &ulQueuedValue, 0U);
	}
	vTaskDelayUntil(&xNextWakeTime, xBlockTime);
	}
	}
	/*-----------------------------------------------------------*/
	static void tskShowState(void *pvParameters)
	{
	TickType_t xNextWakeTime;
	const TickType_t xBlockTime = ShowState_FREQUENCY_MS;
	/* Prevent the compiler warning about the unused parameter. */
	(void)pvParameters;
	/* Initialise xNextWakeTime - this only needs to be done once. */
	xNextWakeTime = xTaskGetTickCount();
	for (;; )
	{
	/* generate interrupt. */
	vPortGenerateSimulatedInterrupt(showStateInterruptNumber);
	/* Place this task in the blocked state until it is time to run again.
	While in the Blocked state this task will not consume any CPU time. */
	vTaskDelayUntil(&xNextWakeTime, xBlockTime);
	}
	}
	/*-----------------------------------------------------------*/

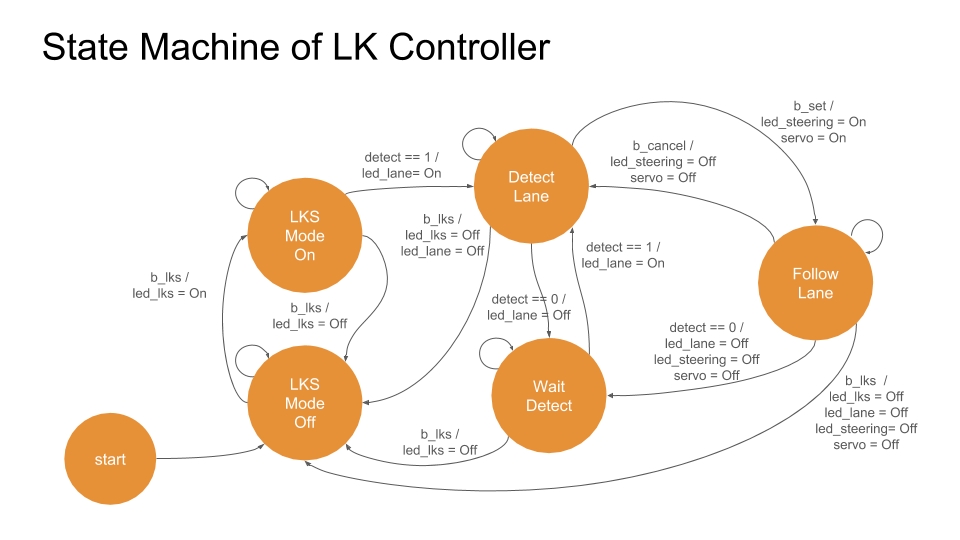

	struct main_state;
	typedef void main_state_fn(struct main_state *);
	struct main_state
	{
	main_state_fn * next;
	uint32_t button;
	bool led_lks;
	bool led_lane;
	bool led_steering;
	bool servo;
	};
	main_state_fn start,
	lks_mode_off,
	lks_mode_on,
	detect_lane,
	wait_detect,
	follow_lane;
	void start(struct main_state * state)
	{
	state->next = lks_mode_off;
	}
	void lks_mode_off(struct main_state * state)
	{
	if (state->button == BUTTON_LKS){
	state->led_lks = true;
	state->next = lks_mode_on;
	}
	else{
	state->next = lks_mode_off;
	}
	}
	void lks_mode_on(struct main_state * state)
	{
	if (state->button == BUTTON_LKS){
	state->led_lks = false;
	state->next = lks_mode_off;
	}
	else if (state->button == LANE_DETECT_1){
	state->led_lane = true;
	state->next = detect_lane;
	}
	else{
	state->next = lks_mode_on;
	}
	}
	void detect_lane(struct main_state * state)
	{
	if (state->button == BUTTON_LKS){
	state->led_lks = false;
	state->led_lane = false;
	state->next = lks_mode_off;
	}
	else if (state->button == LANE_DETECT_0){
	state->led_lane = false;
	state->next = wait_detect;
	}
	else if (state->button == BUTTON_SET){
	state->led_steering = true;
	state->servo = true;
	state->next = follow_lane;
	}
	else{
	state->next = detect_lane;
	}
	}
	void wait_detect(struct main_state * state)
	{
	if (state->button == BUTTON_LKS){
	state->led_lks = false;
	state->next = lks_mode_off;
	}
	else if (state->button == LANE_DETECT_1){
	state->led_lane = true;
	state->next = detect_lane;
	}
	else{
	state->next = wait_detect;
	}
	}
	void follow_lane(struct main_state * state)
	{
	if (state->button == BUTTON_LKS){
	state->led_lks = false;
	state->led_lane = false;
	state->led_steering = false;
	state->servo = false;
	state->next = lks_mode_off;
	}
	else if (state->button == BUTTON_CANCEL){
	state->led_steering = false;
	state->servo = false;
	state->next = detect_lane;
	}
	else if (state->button == LANE_DETECT_0){
	state->led_lane = false;
	state->led_steering = false;
	state->servo = false;
	state->next = wait_detect;
	}
	else{
	state->next = follow_lane;
	}
	}
	/*-----------------------------------------------------------*/
	static void updateLCD(uint32_t ulReceivedValue,
	bool led_lks,
	bool led_lane,
	bool led_steering,
	bool servo)
	{
	printf("led_lks:%d, ", led_lks);
	printf("led_lane:%d, ", led_lane);
	printf("led_steering:%d, ", led_steering);
	printf("servo:%d", servo);
	if (ulReceivedValue == BUTTON_LKS)
	printf(", BUTTON_LKS");
	else if (ulReceivedValue == BUTTON_SET)
	printf(", BUTTON_SET");
	else if (ulReceivedValue == BUTTON_CANCEL)
	printf(", BUTTON_CANCEL");
	else if (ulReceivedValue == LANE_DETECT_0)
	printf(", LANE_DETECT_0");
	else if (ulReceivedValue == LANE_DETECT_1)
	printf(", LANE_DETECT_1");
	printf("\r\n");
	}
	/*-----------------------------------------------------------*/
	static void tskController(void *pvParameters)
	{
	uint32_t ulReceivedValue;
	/* init FSM */
	struct main_state main_state = {start, "", false, false, false, false};
	for (;; )
	{
	/* Wait until something arrives in the queue - this task will block indefinitely.
	It will not use any CPU time while it is in the Blocked state. */
	xQueueReceive(queueController, &ulReceivedValue, portMAX_DELAY);
	/* update FSM */
	main_state.button = ulReceivedValue;
	main_state.next (&main_state);
	/* update LCD */
	updateLCD(ulReceivedValue,
	main_state.led_lks,
	main_state.led_lane,
	main_state.led_steering,
	main_state.servo);
	}
	}
	/*-----------------------------------------------------------*/

view raw main_blinky.c hosted with by GitHub

Result
